How do I know what JST connectors I have?
Ava Hudson How do I know what JST connectors I have?

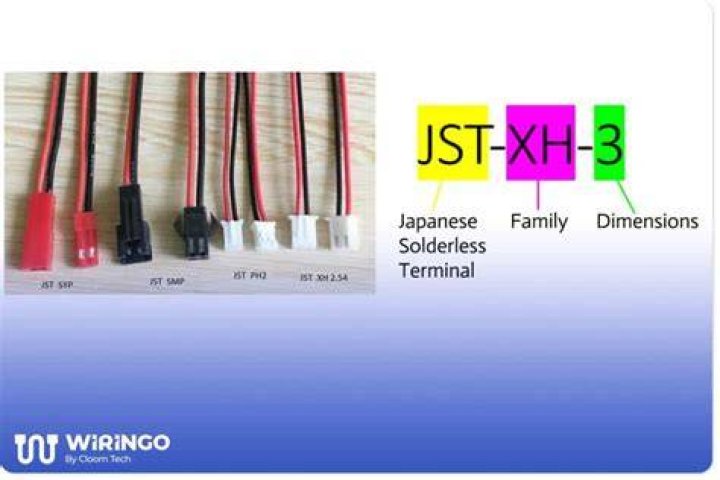

JST connectors are mostly identified by the length between one contanct to the centre of another contact. There are always between two to higher contacts in a single line. Some families have multiple rows as well. This length is the pitch of the connector type and determines the family that the connector is a part off.
What is the smallest JST connector?
ZH (1.5mm pitch) ZH is one of the smallest pitch types of through-hole JST connector.
Are all JST connectors the same?
We start with the JST XH series. Its pitch of 2.5 mm is effectively identical to the 0.1″ pitch commonly found on prototyping breadboards. After the XH series, the pin pitch gets narrower, the wires get thinner, and the connectors are more fragile through PH (2.0 mm), ZH (1.5 mm), GH (1.25 mm), and SH (1.0 mm).
What is jst pin?
JST connectors are electrical connectors manufactured to the design standards originally developed by J.S.T. Mfg. Co. (Japan Solderless Terminal). JST manufactures numerous series (families) and pitches (pin-to-pin distance) of connectors.
What is JST connector size?
Connector series
| JST Series | Pin-to-Pin Pitch | Wire Size (AWG) |
|---|---|---|
| XH | 2.50 mm (0.098 in) | 30 to 22 |
| PA | 2.00 mm (0.079 in) | 28 to 22 |
| PH | 2.00 mm (0.079 in) | 32 to 24 |
| ZH | 1.50 mm (0.059 in) | 32 to 26 |
What is a JST XH connector?
The JST XH series’ disconnectable, 2.5 mm (0.984”) pitch, crimp-style connector was developed based on the high reliability and versatility of their NH series connectors. These wire-to-board connectors are typically used to bring power to a PC board. XH series connectors are available with one to twenty positions.
What is a JST plug?
This JST RCY plug is also referred to as a BEC (battery eliminator circuit) connector and is commonly used with battery packs for RC applications.
What is 4 pin DIN connector?
The 4-pin Mini Din connector is the proper name for what is commonly referenced as an S-Video connector. The connector has 4 pins arranged in 2 rows, as well as a keying block to make certain the plug cannot be inserted improperly.
What is 4 pin mini DIN?
One of the best-known mini-DIN connectors is the four-pin variant which is used in the S-Video connection standard. This standard, which came out to support higher quality pre-high definition systems such as S-VHS and the digital video (DV) mini-DV specification.
